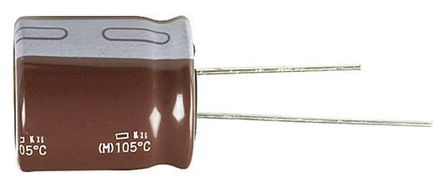

Image is for your reference only,please check specifications for details

EEUFR1H4R7 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC38687826
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Lytic 4.7uF 50V 20% (5 X 11mm) Radial 2mm 185mA 5000H 105℃ Bulk
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Panasonic FR series capacitors are type A, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 4.7µF to 8200µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form. In comparison to Panasonic FM series, the FR series capacitors can achieve a endurance upgrade of up to 100% and a capacitance increase of up to 30% by improving material technology.
Rated voltage range of 6.3VDC to 100VDC
Tolerance of ±20%
Endurance of 5000h to 10000h at 105°C
Operating temperature range -40°C to 105°C
High reliability

Show

EEUFR1H4R7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	2 mm
Voltage Rating (DC)	50.0 V
Capacitance	4.7 µF
Capacitance Tolerance	±20 %
Ripple Current	185 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±20 %
Voltage Rating	50 V
	Show
Size-Height	11 mm
Size-Diameter	5.00 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Each
Life (Hours)	5000h @105℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
