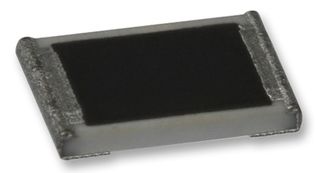

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Panasonic ERJ 6E series resistors are automotive grade precision thick film chip resistors. The resistance range includes E24 and E96 decade values from 10 ohm to 2.2Mohm. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.
EIA 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 case sizes available
Small size, low weight resistors
Automotive grade AEC-Q200 compliant
Maximum power rating of 1W
Available in ±0.5% and ±1% tolerance
Temperature coefficient (TCR) of ±50, ±100, ±200 and ±300ppm/°C
Available in -55°C to 125°C and -55°C to 155°C operating temperature ranges
Meets IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B standards
Suitable for both reflow and flow soldering

Show

ERJ6ENF4533V Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	2012
Case/Package	0805
Voltage Rating (DC)	150 V
Power Rating	125 mW
Part Family	ERJ6E
Resistance	453 kΩ
Resistance Tolerance	±1 %
Voltage Rating	150 V
	Show
Size-Length	2.00 mm
Size-Width	1.25 mm
Size-Height	0.6 mm
Temperature Coefficient	±100 ppm/℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	5000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
