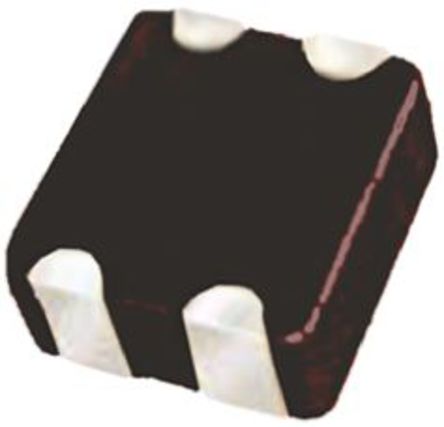

EXC24CE201U - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC11141143
Category:
Power Supply Filter
Package:
1210
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS EXC24CE201U Filter, Noise, Common Mode, EXC24CE Series, 200Ω, 130mA, 1.25mm x 1mm x 0.5mm
Stock Locations:
Availability:
1,816 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EXC24CE series Common Mode Noise Filter suitable for USB data lines such as PCs, DSC, Mobile phone, LVDS data lines such as PCs, TV and IEEE1394 data lines such as PCs, TV applications. This reduces the common mode noise and reform the signal wave by high-coupled inductors. It has strong multi-layer structure which provides high resistance to reflow soldering & high mounting reliability.
Magnetic shield type
High-Q impedance
Small size
Low-profile

Show

EXC24CE201U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	1210
Frequency	100 MHz
Voltage Rating (DC)	5.00 V
Current Rating	130 mA
Resistance	200 Ω
Shielding	Yes
DC Resistance (DCR)	2.7 Ω
Current Rating (Max)	130 mA
Current Rating (DC)	130 mA
Voltage Rating (Max)	5 VDC
Voltage Rating	5 V
Resistance (DC Max)	2.7 Ω
	Show
Size-Length	1.25 mm
Size-Width	1 mm
Size-Height	1.25 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
