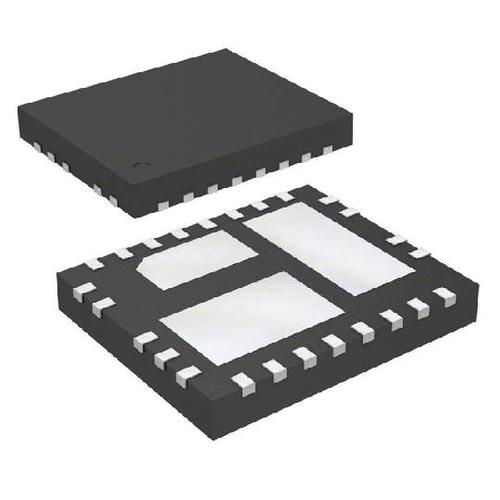

FAN21SV04EMPX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC98542800
Category:
Voltage Regulator
Package:
MLP-25
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3V to 24V Step Down Single-Out 0.8V to 19.2V 4A 25Pin MLP T/R
Stock Locations:
Availability:
2,934 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN21SV04EMPX is an integrated synchronous Buck Regulator contains both synchronous MOSFETs and a controller/driver with optimized interconnects, which enables designers to solve high-current requirements in a small area with minimal external components. On-board internal 5V regulator enables single-supply operation for input voltages >6.5V. It can be configured to drive multiple slave devices or synchronize to an external system clock. In slave mode, FAN21SV04 may be set up to be free-running in the absence of a master clock signal. External compensation, programmable switching frequency and current-limit features allow for design optimization and flexibility. High-frequency operation allows for all-ceramic solutions. Integration helps minimize critical inductances, making layout simpler and more efficient compared to discrete solutions. Output overvoltage, undervoltage, overcurrent and thermal-shutdown protections help protect the device from damage during fault conditions.
Fully synchronous operation with integrated Schottky diode on low-side MOSFET boosts efficiency
Synchronizable to external clock with master/slave provisions
Power-good signal
Accepts ceramic capacitors on output
External compensation for flexible design
Starts on pre-bias outputs
Integrated bootstrap diode
Over 94% peak efficiency
1% Reference accuracy over temperature

Show

FAN21SV04EMPX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	25 Pin
Case/Package	MLP-25
Number of Outputs	1 Output
Output Voltage	0.8V ~ 19.2V
Output Current	4 A
Number of Positions	25 Position
Switching Frequency	200kHz ~ 600kHz
Input Voltage (Max)	24 V
Input Voltage (Min)	3 V
Output Voltage (Max)	19.2 V
Output Voltage (Min)	0.8 V
Output Current (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	24 V
	Show
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
