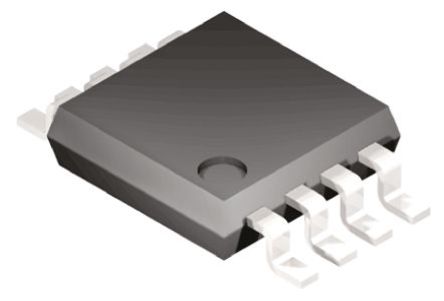

Image is for your reference only,please check specifications for details

FAN4852IMU8X - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC105418415
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FAN4852IMU8X Operational Amplifier, Dual, 2 Amplifier, 9MHz, 6.2V/µs, 2.5V to 5V, MSOP, 8Pins
Stock Locations:
Availability:
9,587 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN4852IMU8X is a rail-to-rail output low-power dual CMOS Operational Amplifier consumes only 800µA of supply current, while providing ±50mA of output short-circuit current. This amplifier is designed to operate supplies from 2.5 to 5V. Additionally, the FAN4852 is EMI hardened, which minimizes EMI interference. It has a maximum input offset voltage of 1mV and an input common-mode range that includes ground. The FAN4852 is designed on a CMOS process and provides 9MHz of bandwidth and 6V/µs of slew rate. The combination of low-power and low-voltage operation make this amplifier well suited for general-purpose and battery-powered applications.
Input voltage range exceeds the rails
Output swing to within 10mV of either rail
0.8mA Supply current
11nV/√Hz Input voltage noise

Show

FAN4852IMU8X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	900 µA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Common Mode Rejection Ratio	77 dB
Bandwidth	9 MHz
Slew Rate	6.20 V/μs
Gain Bandwidth Product	9 MHz
Input Offset Voltage	300 µV
Input Bias Current	0.1 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	9 MHz
Minimum CMRR Range	77 dB
Supply Voltage	2.5V ~ 5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
