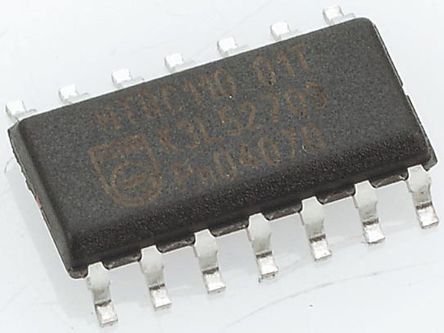

Image is for your reference only,please check specifications for details

FAN7390M1X - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC87323528
Category:
FET Driver
Package:
SOP-14
Datasheet:
Datasheet 3D Model
Description:
MOSFET DRVR 600V 4.5A 2Out Hi/Lo Side Half Brdg Non-Inv 14Pin SOP-II T/R
Stock Locations:
Availability:
9,521 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The FAN7390 is a monolithic high- and low-side gatedrive IC, which can drive high speed MOSFETs and IGBTs that operate up to +600V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross-conduction.
Fairchild’s high-voltage process and common-mode noise canceling techniques provide stable operation of the high-side driver under high dv/dt noise circumstances.
An advanced level shift circuit offers high-side gate driver operation up to VS=-9.8V (typical) for VBS=15V.
The UVLO circuit prevents malfunction when VDDand VBSare lower than the specified threshold voltage.
Features
Floating Channels for Bootstrap Operation to +600V
Typically 4.5A/4.5A Sourcing/Sinking Current Driving Capability
Common-Mode dv/dt Noise Canceling Circuit
Built-in Under-Voltage Lockout for Both Channels
Matched Propagation Delay for Both Channels
Logic (VSS) and Power (COM) Ground +/- 7V Offset
3.3V and 5V Input Logic Compatible
Output In-phase with Input
Applications
PDP Sustain Driver
HID Lamp Ballast
SMPS
Motor Driver

Show

FAN7390M1X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOP-14
Supply Voltage (DC)	10.0V (min)
Rise/Fall Time	25ns, 20ns
Number of Outputs	2 Output
Output Current	4.5 A
Supply Current	0.64 mA
Power Dissipation	1 W
Rise Time	25 ns
Output Current (Max)	4.5 A
Fall Time	20 ns
Fall Time (Max)	50 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	10V ~ 22V
Supply Voltage (Max)	22 V
Supply Voltage (Min)	10 V
	Show
Size-Length	8.76 mm
Size-Width	4.2 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
