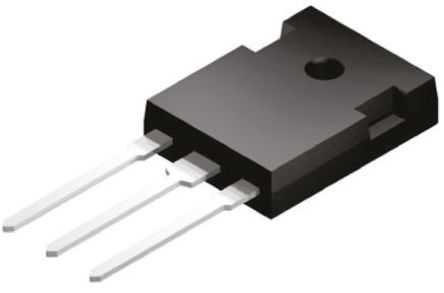

Image is for your reference only,please check specifications for details

FFH60UP40S3 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC104237453
Category:
TVS Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FFH60UP40S3 Standard Recovery Diode, 400V, 60A, Single, 1.3V, 85ns, 600A
Stock Locations:
Availability:
1,179 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FFH60UP40S3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.3V @60A
Thermal Resistance	0.2℃/W (RθJC)
Reverse recovery time	85 ns
Forward Current	60 A
Max Forward Surge Current (Ifsm)	600 A
Maximum Forward Voltage (Max)	1.3V @60A
Forward Current (Max)	60 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	15.87 mm
Size-Width	4.82 mm
Size-Height	20.82 mm
Operating Temperature	65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
