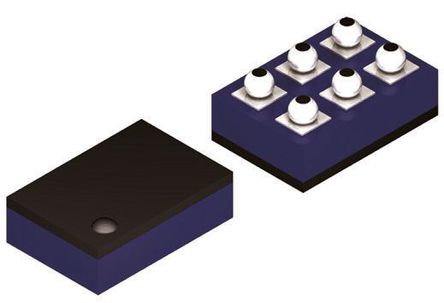

Image is for your reference only,please check specifications for details
- FPF1038UCX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC58524207
-
Category:Power Distribution
-
Package:WLCSP-6
-
Datasheet:Datasheet 3D Model
-
Description:Analog Circuit, 1 Func, PBGA6, 1 X 1.5MM, 0.5MM PITCH, GREEN, WLCSP-6
-
Stock Locations:
-
Availability:9,287 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.7
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The FPF1038 advanced load-management switch target applications requiring a highly integrated solution for
- disconnecting loads powered from DC power rail (<6 V) with stringent shutdown current targets and high load
- capacitances (up to 200 µF). The FPF1038 consists of slew-rate controlled low-impedance MOSFET switch(21 m
- typical) and other integrated analog features. The slew-rate controlled turn-on characteristic prevents inrush current and the resulting excessive voltage droop on power rails.
- Features
- 1.2 V to 5.5 V Input Voltage Operating Range
- Typical RON:
- 20 m at VIN=5.5 V
- 21 m at VIN=4.5 V
- 37 m at VIN=1.8 V
- 75 m at VIN=1.2 V
- Slew Rate / Inrush Control with tR: 2.7 ms (Typical)
- 3 A Maximum Continuous Current Capability
- Low <1 µA Shutdown Current
- ESD Protected: Above 8 kV HBM, 1.5 kV CDM
- GPIO / CMOS-Compatible Enable Circuitry
- Applications
- HDD, Storage, and Solid-State Memory Devices
- Portable Media Devices, UMPC, Tablets, MIDs
- Wireless LAN Cards and Modules
- SLR Digital Cameras
- Portable Medical Devices
- GPS and Navigation Equipment
- Industrial Handheld and Enterprise Equipment
FPF1038UCX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | WLCSP-6 |
| Power Rating | 1.2 W |
| Number of Outputs | 1 Output |
| Output Current | 2 A |
| Supply Current | 0.001 mA |
| Power Dissipation | 1.2 W |
| Output Current (Max) | 3.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1200 mW |
| Input Voltage | 1.2V ~ 5.5V |
| Show | |
| Size-Length | 1.5 mm |
| Size-Width | 1 mm |
| Size-Height | 0.332 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
