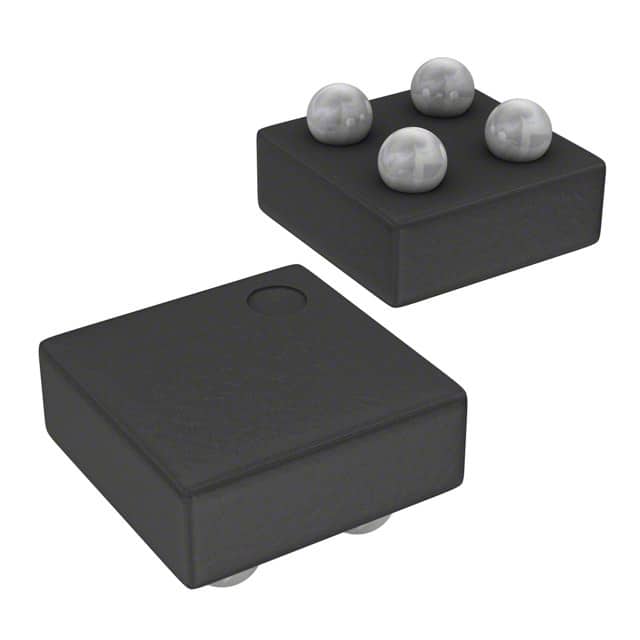

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FPF1504 is a low-R P-channel MOSFET load switch of the IntelliMAX™ family. Integrated slew-rate control prevents excessive inrush current from the supply rails with capacitive loads common in power applications. In addition, the FPF1504 features output discharge capability.The input voltage range operates from 1.0 V to 3.6 V to fulfill today"s mobile device supply requirements. Switch control is by a logic input (ON pin) capable of interfacing directly with low-voltage CMOS control signals and GPIOs in embedded processors.
Features
---
|
1.0 V to 3.6 V Input Voltage Operating Range
Typical RDS(ON):
15 mΩ at VIN=3.3 V
20 mΩ at VIN=1.8 V
55 mΩ at VIN=1.0 V
Slew Rate Control with tR: 130 µs
Output Discharge Function
Low <1 µA Quiescent Current at VON=VIN
ESD Protected: 4000 V HBM, 2000 V CDM
GPIO/CMOS-Compatible Enable Circuitry

Show

FPF1504BUCX Specifications
