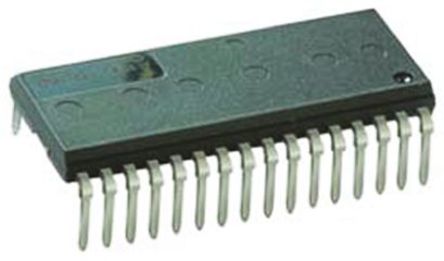

Image is for your reference only,please check specifications for details

FSB50250 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC120620381
Category:
MOSFET, MOSFET Transistor
Package:
SPM23-AA
Datasheet:
Datasheet 3D Model
Description:
FSB50250 Series Single Output 400V 1A 3 Phase Motor Driver - SPM-23AA
Stock Locations:
Availability:
1,434 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Simplify your power management system by implementing this FSB50250 specialized power IC from Fairchild Semiconductor. This product comes in rail packaging to keep individual parts separated and protected. This USB PWM controller has an operating temperature range of -20 °C to 150 °C.

Show

FSB50250 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	23 Pin
Case/Package	SPM23-AA
Supply Voltage (DC)	400V (max)
Output Current	≤1.00 A
Drain to Source Resistance (on) (Rds)	3.30 Ω
Power Dissipation	4.50 W
Breakdown Voltage (Drain to Source)	500 V
Continuous Drain Current (Ids)	1.00 A
Isolation Voltage	1500 Vrms
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	4.5 W
	Show
Size-Length	29 mm
Size-Width	12 mm
Size-Height	3.1 mm
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
