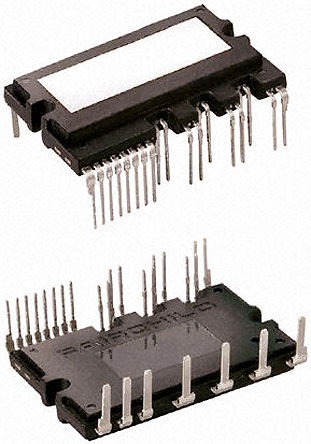

Image is for your reference only,please check specifications for details

Updated at 18/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FSBB15CH60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-CA
Output Current	≤15.0 A
Power Dissipation	50 W
Isolation Voltage	2500 Vrms
Breakdown Voltage (Collector to Emitter)	600 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	50000 mW
	Show
Size-Length	44.2 mm
Size-Width	27 mm
Size-Height	5.7 mm
Operating Temperature	-20℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
