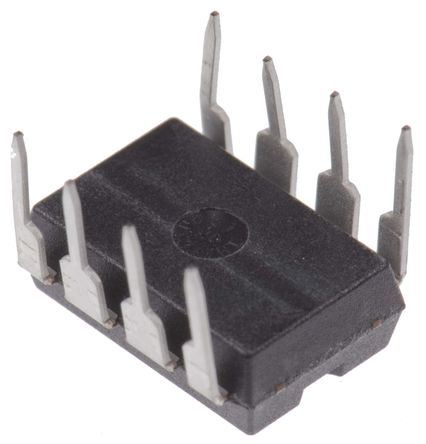

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FSL206MRN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Power Rating	12 W
Number of Outputs	1 Output
Input Voltage (DC)	26.0 V
Breakdown Voltage	650 V
Supply Current	0.3 mA
Power Dissipation	1.3 W
Switching Frequency	67 kHz
Duty Cycle	72 %
Output Current (Min)	0.54 A
Operating Temperature (Max)	115 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1300 mW
Input Voltage	26 V
	Show
Size-Length	9.83 mm
Size-Width	6.67 mm
Size-Height	3.683 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
