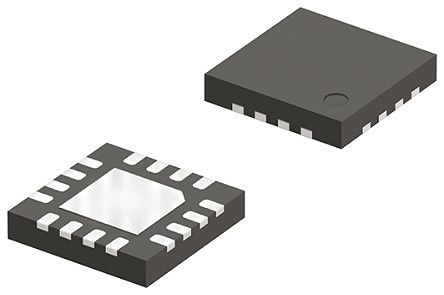

Image is for your reference only,please check specifications for details

FXL2SD106BQX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC116556732
Category:
Voltage Level Translator IC
Package:
DQFN-16
Datasheet:
Datasheet 3D Model
Description:
Voltage Level Translator Bidirectional 1 Circuit 6Channel 100Mbps 16-DQFN (2.5x3.5)
Stock Locations:
Availability:
9,799 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.21

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Bi-Directional Interface between Two Levels * 1.1V and 3.6V * Fully Configurable * Inputs and Outputs Track VCC Level * Non-Preferential Power-up; Either VCC May Be Powered-up First * Outputs Remain in 3-State until Active VCC Level is Reached * Outputs Switch to 3-State if Either VCC is at GND * Power-Off Protection * Bus HOLD on Data Inputs Eliminates Need for Pull-up Resistors (Do NOT Use Resistors on the A or B Ports) * OE and CLK IN are Referenced to VCCA Voltage * Packaged in 16-Terminal DQFN (2.5mm x 3.5mm) * Direction Control Not Needed * 80Mbps Throughput Translating between 1.8V and 2.5V * ESD Protection Exceeds * 12kV HBM (B port I/O to GND) (per JESD22-A114 & Mil Std 883e 3015.7) * 8kV HBM (A port I/O to GND) (per JESD22-A114 & Mil Std 883e 3015.7) * 1kV CDM (per ESD STM 5.3)

Show

FXL2SD106BQX Specifications
