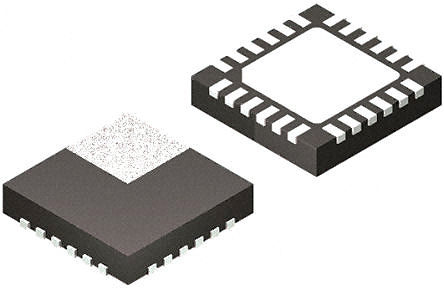

Image is for your reference only,please check specifications for details
- FXL4245MPX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC76629769
-
Category:Logic Controller, Logic IC
-
Package:WFQFN-24
-
Datasheet:Datasheet 3D Model
-
Description:Low Voltage Dual Supply 8Bit Signal Translator with Configurable Voltage Supplies and Signal Levels and 3-STATE Outputs, 24LD,MLP,QUAD,JEDEC MO-220,3.5MM X 4.5MM, 3000/TAPE REEL
-
Stock Locations:
-
Availability:9,256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 31.57
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Are you looking for a device that can regulate the input voltage into your circuit? Fairchild Semiconductor"s FXL4245MPX level translator is the perfect solution for you. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.1 V, while its maximum is 3.6 V.
FXL4245MPX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | WFQFN-24 |
| Output Current | 24.0 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 8 Channel |
| Number of Bits | 8 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 8 Channel |
| Supply Voltage | 1.1V ~ 3.6V |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
