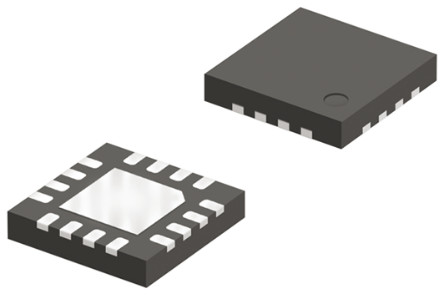

Image is for your reference only,please check specifications for details
- FXL4TD245BQX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC62411103
-
Category:Voltage Level Translator IC
-
Package:DQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:FAIRCHILD SEMICONDUCTOR FXL4TD245BQX Voltage Level Translator, 4Input, 24mA, 3.5ns, 1.1V to 3.6V, DQFN-16
-
Stock Locations:
-
Availability:10,202 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The FXL4TD245BQX is a 4-bit dual supply Configurable Translator designed for both uni-directional and bi-directional voltage translation between two logic levels. The device allows translation between voltages as high as 3.6V to as low as 1.1V. The A port tracks the VCCA level and the B port tracks the VCCB level. The device remains in 3-STATE until both VCCs reach active levels allowing either VCC to be powered-up first. Internal power down control circuits place the device in 3-state if either VCC is removed. The transmit/receive (T/R\\) input determines the direction of data flow through the device. The OE\ input, when high, disables both the A and B ports by placing them in a 3-state condition. The FXL4TD245 is designed so that the control pins (T/R\ and OE) are supplied by VCCA.
- Fully configurable - Inputs track VCC level
- Power-OFF protection
- Non-preferential power-up sequencing; either VCC may be powered-up first
- Outputs remain in 3-STATE until active VCC level is reached
- Outputs switch to 3-STATE if either VCC is at GND
- Control inputs (T/R n, OE) levels are referenced to VCCA voltage
- Green product and no Sb/Br
FXL4TD245BQX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | DQFN-16 |
| Supply Voltage (DC) | 1.10V (min) |
| Output Current | 24 mA |
| Supply Current | 10.0 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 4 Bit |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 4 Channel |
| Supply Voltage | 1.1V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.1 V |
| Show | |
| Size-Length | 3.5 mm |
| Size-Width | 2.5 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
