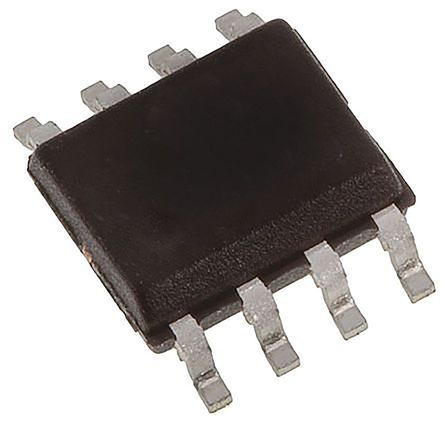

ICE2PCS01GXUMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC755053
Category:
Power Management IC
Package:
PG-DSO-8
Datasheet:
Datasheet 3D Model
Description:
INFINEON ICE2PCS01GXUMA1 PFC Controller IC, 11.5V to 25V & 15mA Supply, 11.5V Lockout, 95% Duty Cycle, 285Hz, SOIC-8
Stock Locations:
Availability:
32 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.47

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICE2PCS01G is a standalone Power Factor Correction (PFC) Controller IC in continuous conduction mode (CCM) for active power factor correction converters. It is designed for converters in boost topology and requires few external components. Its power supply is recommended to be provided by an external auxiliary supply which will switch ON and OFF the IC. The IC operates in the CCM with average current control and in DCM only under light load condition. The switching frequency is programmable by the resistor. Both compensations for the current and voltage loop are external to allow full user control. There is various protection features incorporated to ensure safe system operation conditions. The internal reference is trimmed to ensure precise protection and control level. The device has a fast start-up time with controlled peak start-up current.
Ease of use with few external components
Supports wide range
Average current control
VCC under-voltage lockout
Cycle-by-cycle peak current limiting
Output over-voltage protection
Open loop detection
Enhanced dynamic response
Short start-up (SoftStart) duration
Soft over-current protection
ESD sensitive device, take proper precaution while handling the device.

Show

ICE2PCS01GXUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8
Frequency	285 Hz
Supply Voltage (DC)	11.5V (min)
Number of Positions	8 Position
Switching Frequency	50kHz ~ 315kHz
Duty Cycle	95 %
Maximum Duty Cycle	98.5 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	11V ~ 25V
Supply Voltage (Max)	25 V
Supply Voltage (Min)	11.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
