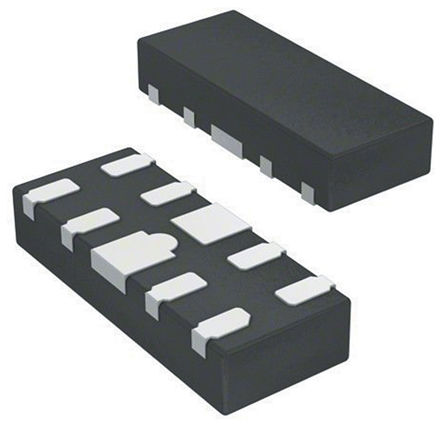

TPD6E001RSER - TI
Manufacturer:
TI
ManyChip's Part#:
MC4728789
Category:
TVS Diode
Package:
UQFN-10
Datasheet:
Datasheet 3D Model
Description:
Low-Capacitance 6Channel +/-15kV ESD Protection Array for High-Speed Data Interfaces 10-UQFN -40℃ to 85℃
Stock Locations:
Availability:
31 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD6E001RSER is a 6-channel low-capacitance ESD Protection Device for high-speed data interfaces. It is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (level 4). The device has a 1.5pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra-low leakage current (<1nA maximum) is suitable for precision analogue measurements in applications like glucose meters and heart rate monitors.
±8kV IEC 61000-4-2 Contact discharge
±15kV IEC 61000-4-2 Air-gap discharge
1nA Low supply current
0.9 to 5.5V Supply-voltage range
-40 to 85°C Operating temperature range

Show

TPD6E001RSER Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Operating Voltage	950 mV
Capacitance	1.5 pF
Breakdown Voltage	11 V
Number of Channels	6 Channel
Number of Positions	10 Position
Clamping Voltage	105.5 V
Test Current	10 mA
Min Breakdown Voltage	11 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.05 mm
Size-Width	1.55 mm
Size-Height	0.55 mm
Weight	0.0001120373228 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99
