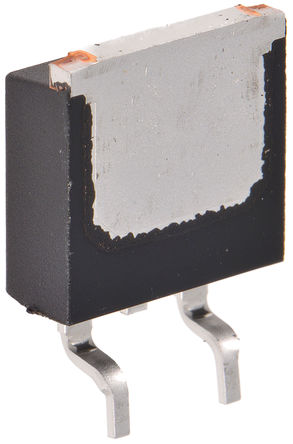

Image is for your reference only,please check specifications for details

IDB30E120 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC99882756
Category:
Schottky Diode
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON IDB30E120 Standard Power Diode, Single, 1.2kV, 50A, 2.15V, 243ns, 102A
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.32

Updated at 14/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IDB30E120 is a Fast-switching EmCon Diode offers low conduction losses and an excellent EMI behaviour. The 1200V family displays excellent softness and VF behaviour and is qualified with a Tj maximum of 150°C.
Lowest VF values
Easy paralleling
Fast-recovery
Soft-switching
Low-reverse recovery charge
Low-forward voltage
Higher-efficiency
Excellent trade-off on performance

Show

IDB30E120 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Forward Voltage	1.7 V
Power Dissipation	138 W
Reverse recovery time	243 ns
Forward Current	50 A
Max Forward Surge Current (Ifsm)	102 A
Maximum Forward Voltage (Max)	2.15 V
Forward Current (Max)	50 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	138 W
	Show
Size-Length	11.05 mm
Size-Width	10.31 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
