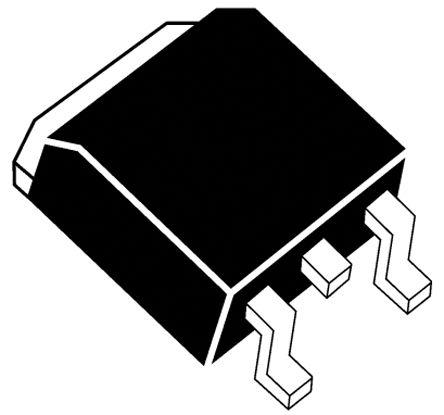

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IDB30E60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Power Dissipation	142.9 W
Reverse recovery time	126 ns
Max Forward Surge Current (Ifsm)	117 A
Maximum Forward Voltage (Max)	2 V
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
