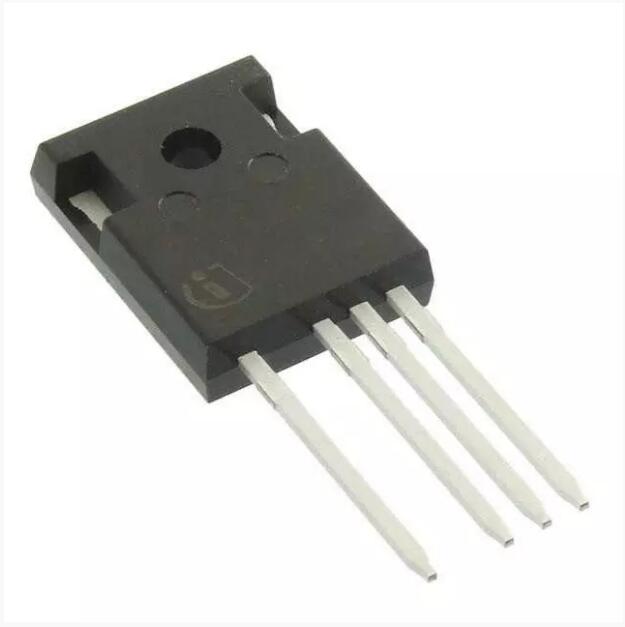

Image is for your reference only,please check specifications for details

IKZ75N65EL5 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC130480966
Package:
TO-247-4
Datasheet:
Datasheet 3D Model
Description:
Infineon’s new L5 low saturation voltage (V CE(sat)) TRENCHSTOP™ IGBT family has been specifically optimized for low switching frequencies ranging from 50Hz to 20kHz. Optimization of the carrier profile of the innovative 55µm TRENCHSTOP™ 5 thin wafer technology allows to reduce conduction losses to the intrinsically low level – 1.05V for 30A IGBT and 1.1V for 75A IGBT.
Stock Locations:
Availability:
277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.53

Updated at 07/05/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Lowest saturation voltage V CE(sat) of only 1.05V
Low switching losses of 1.6mJ @ 25°C for 30A IGBT
High thermal stability of electrical parameters - only 2% drift with T j increase from 25°C to 175°C
Enhanced efficiency for 20% lower switching losses in TO-247 4pin Kelvin-Emitter package
Benefits:
Higher efficiency for 50Hz
Longer lifetime and higher reliability of IGBT
High design reliability due to stable thermal performance
Target Applications:
UPS
Solar
Welding

Show
