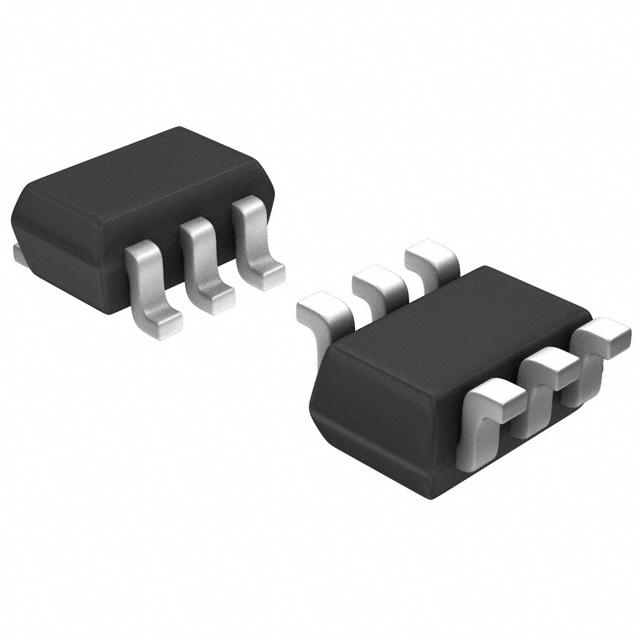

Image is for your reference only,please check specifications for details

INA214BIDCKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC7433123
Category:
Amplifier, Buffer IC
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
26V, Bi-Directional, Zero-Drift, High Accuracy, Low-/High-Side, Voltage Out Current Shunt Monitor 6-SC70 -40℃ to 125℃
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The INA210, INA211, INA212, INA213, and INA214 are voltage output current shunt monitors that can
sense drops across shunts at common-mode voltages from –0.3V to 26V, independent of the supply voltage. Five fixed gains are available: 50V/V, 100V/V, 200V/V, 500V/V, or 1000V/V. The low offset of the Zerø-Drift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale.
FEATURES
• WIDE COMMON-MODE RANGE: –0.3V to 26V
• OFFSET VOLTAGE: ±35µV (Max, INA210)
(Enables shunt drops of 10mV full-scale)
• ACCURACY
– ±1% Gain Error (Max over temperature)
– 0.5µV/°C Offset Drift (Max)
– 10ppm/°C Gain Drift (Max)
• CHOICE OF GAINS:
– INA210: 200V/V
– INA211: 500V/V
– INA212: 1000V/V
– INA213: 50V/V
– INA214: 100V/V
• QUIESCENT CURRENT: 100µA (max)
• SC70 package
APPLICATIONS
• NOTEBOOK COMPUTERS
• CELL PHONES
• TELECOM EQUIPMENT
• POWER MANAGEMENT
• BATTERY CHARGERS
• WELDING EQUIPMENT

Show

INA214BIDCKR Specifications
