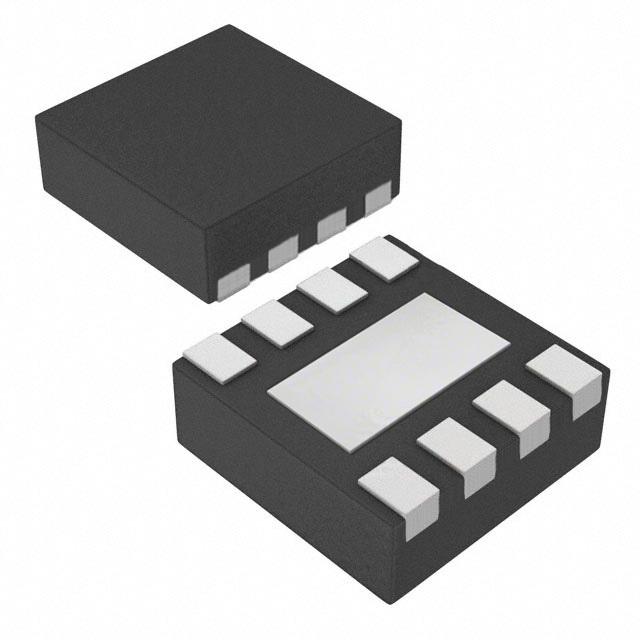

Image is for your reference only,please check specifications for details
- INA333AIDRGR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC40160233
-
Category:Amplifier, Buffer IC
-
Package:WSON-8
-
Datasheet:Datasheet 3D Model
-
Description:Single SupplyLow Power, Precision Instrumentation Amplifier SP Amp INSTR Amp Single R-R O/P ‚±2.75V/5.5V 8Pin WSON EP T/R
-
Stock Locations:
-
Availability:183 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.31
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The INA333 is a low-power, precision instrumentation amplifier offering excellent accuracy. The versatile 3-op amp design, small size, and low power make it ideal for a wide range of portable applications. A single external resistor sets any gain from 1 to 1000. The INA333 is designed to use an industry-standard gain equation: G = 1 + (100kΩ/RG).
- FEATURES
- • LOW OFFSET VOLTAGE: 25µV (max), G ≥ 100
- • LOW DRIFT: 0.1µV/°C, G ≥ 100
- • LOW NOISE: 50nV/√Hz, G ≥ 100
- • HIGH CMRR: 100dB (min), G ≥ 10
- • LOW INPUT BIAS CURRENT: 200pA (max)
- • SUPPLY RANGE: +1.8V to +5.5V
- • INPUT VOLTAGE: (V–) +0.1V to (V+) –0.1V
- • OUTPUT RANGE: (V–) +0.05V to (V+) –0.05V
- • LOW QUIESCENT CURRENT: 50µA
- • OPERATING TEMPERATURE: –40°C to +125°C
- • RFI FILTERED INPUTS
- • MSOP-8 AND DFN-8 PACKAGES
- APPLICATIONS
- • BRIDGE AMPLIFIERS
- • ECG AMPLIFIERS
- • PRESSURE SENSORS
- • MEDICAL INSTRUMENTATION
- • PORTABLE INSTRUMENTATION
- • WEIGH SCALES
- • THERMOCOUPLE AMPLIFIERS
- • RTD SENSOR AMPLIFIERS
- • DATA ACQUISITION
INA333AIDRGR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | WSON-8 |
| Supply Current | 50 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 80 dB |
| Quiescent Current | 50.0 µA |
| Input Offset Voltage | 10 µV |
| Input Bias Current | 70 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 150 kHz |
| Gain Bandwidth | 150 kHz |
| Minimum CMRR Range | 80 dB |
| Supply Voltage | 1.8V ~ 5.5V |
| Supply Voltage (Max) | 5V ~ 7V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
