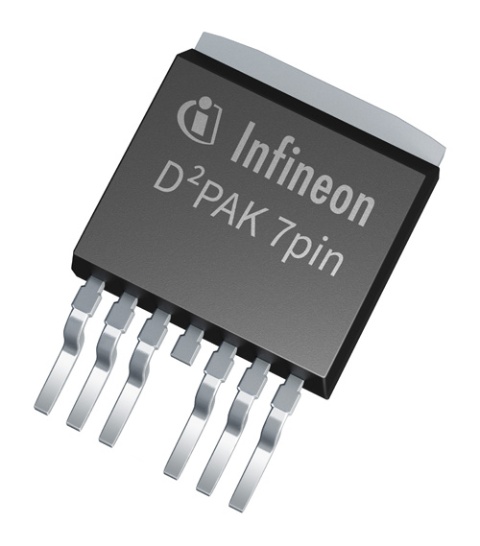

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IPB015N08N5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-7
Polarity	N-CH
Drain to Source Voltage (Vds)	80 V
Continuous Drain Current (Ids)	180A
Rise Time	32 ns
Input Capacitance (Ciss)	13000pF @40V(Vds)
Fall Time	28 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	375000 mW
	Show
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
ECCN Code	EAR99
