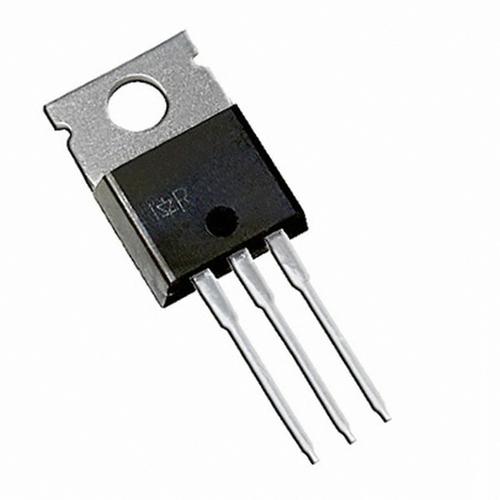

Image is for your reference only,please check specifications for details

IRF3315 - International Rectifier
Manufacturer:
International Rectifier
ManyChip's Part#:
MC329891357
Category:
MOSFET, MOSFET Transistor
Datasheet:
Datasheet 3D Model
Description:
Single N-Channel 150V 136W 95NC Hexfet Power Mosfet Flange Mount - TO-220AB
Stock Locations:
Availability:
294 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF3315 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220
Voltage Rating (DC)	150 V
Current Rating	27.0 A
Polarity	N-Channel
Power Dissipation	136 W
Part Family	IRF3315
Drain to Source Voltage (Vds)	150 V
Continuous Drain Current (Ids)	27.0 A
Rise Time	32.0 ns
Input Capacitance (Ciss)	1300pF @25V(Vds)
Input Power (Max)	136 W
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
