Description
- Description
- This power MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY™ process. This technology matches and improves the performances compared with standard parts from various sources.
- General features
- ■ Extremely high dv/dt capability
- ■ Very low intrinsic capacitances
- ■ Gate charge minimized
- Applications
- ■ Switching application

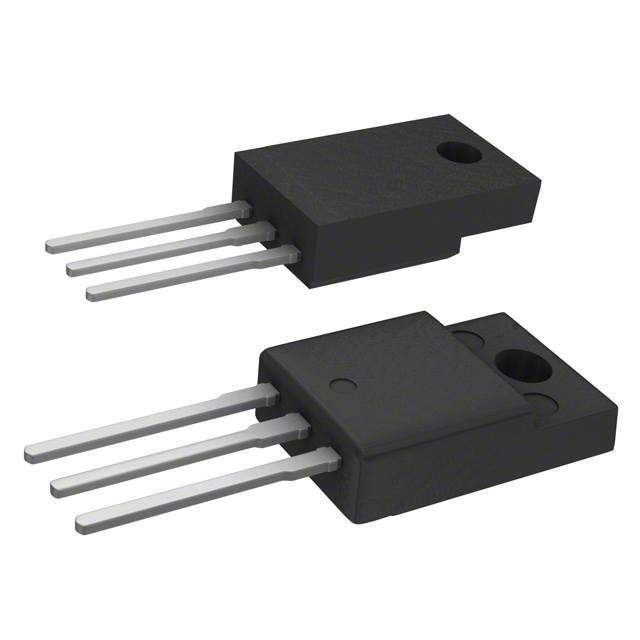

IRF630FP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Polarity | N-CH |
| Power Dissipation | 30 W |
| Drain to Source Voltage (Vds) | 200 V |
| Continuous Drain Current (Ids) | 9A |
| Rise Time | 15 ns |
| Input Capacitance (Ciss) | 700pF @25V(Vds) |
| Input Power (Max) | 30 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 30W (Tc) |
| Show | |
| Operating Temperature | -65℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
