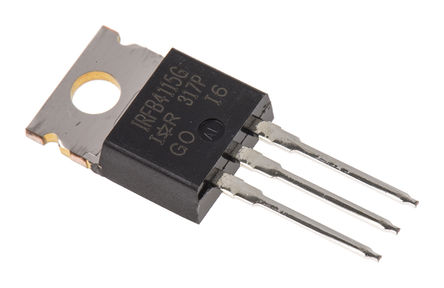

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
IRFB4115GPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Power Rating | 380 W |
| Polarity | N-Channel |
| Power Dissipation | 380 W |
| Drain to Source Voltage (Vds) | 150 V |
| Continuous Drain Current (Ids) | 104A |
| Rise Time | 73 ns |
| Input Capacitance (Ciss) | 5270pF @50V(Vds) |
| Fall Time | 39 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 380W (Tc) |
| Show | |
| Size-Length | 10.67 mm |
| Size-Width | 4.83 mm |
| Size-Height | 16.51 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Rail, Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
