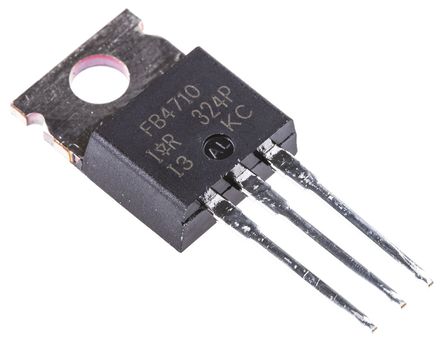

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The IRFB4710PBF is a HEXFET® single N-channel Power MOSFET offers low gate-to-drain charge to reduce switching losses. It is suitable for high frequency DC-to-DC converters.
- Fully characterized capacitance including effective COSS to simplify design
- Fully characterized avalanche voltage and current
IRFB4710PBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Power Rating | 200 W |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.014 Ω |
| Polarity | N-Channel |
| Power Dissipation | 200 W |
| Threshold Voltage | 5.5 V |
| Input Capacitance | 6160 pF |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 75A |
| Rise Time | 130 ns |
| Input Capacitance (Ciss) | 6160pF @25V(Vds) |
| Input Power (Max) | 3.8 W |
| Fall Time | 38 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.8W (Ta), 200W (Tc) |
| Show | |
| Size-Length | 10.54 mm |
| Size-Height | 8.77 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
