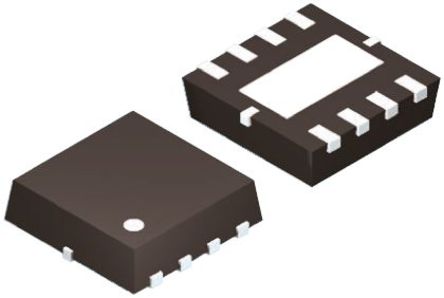

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- Low Thermal Resistance to PCB (less than 4.7°C/W)
- Low Profile (less than 1.0 mm)
- Industry-Standard Pinout
- Compatible with Existing Surface Mount Techniques
- Qualified Industrial
- Qualified MSL1
IRFHM831TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | QFN-8 |
| Power Rating | 2.5 W |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 0.0066 Ω |
| Polarity | N-Channel |
| Power Dissipation | 2.5 W |
| Threshold Voltage | 1.8 V |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30 V |
| Continuous Drain Current (Ids) | 14A |
| Rise Time | 12 ns |
| Input Capacitance (Ciss) | 1050pF @25V(Vds) |
| Input Power (Max) | 2.5 W |
| Fall Time | 4.7 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2.5W (Ta), 27W (Tc) |
| Show | |
| Size-Length | 3.3 mm |
| Size-Width | 3.3 mm |
| Size-Height | 1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
