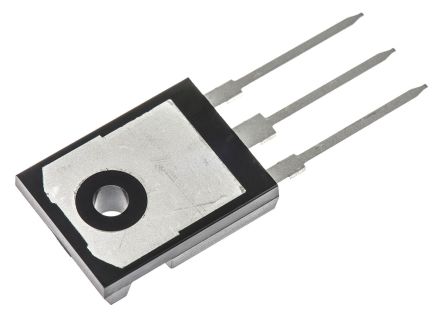

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IRFPC40PBF is a 600V N-channel enhancement-mode Power MOSFET with single configuration. This third generation Power MOSFET from Vishay provides the designer with the best combination of fast switching, ruggedized device design, low ON-resistance. It also provides greater creepage distance between pins to meet the requirements of most safety specifications.
Dynamic dV/dt rating
Repetitive avalanche rated
Fast switching
Ease of paralleling
Simple drive requirements

Show

IRFPC40PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.2 Ω
Polarity	N-Channel
Power Dissipation	150 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	6.80 A
Input Capacitance (Ciss)	1300pF @25V(Vds)
Input Power (Max)	150 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 W
	Show
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.7 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
