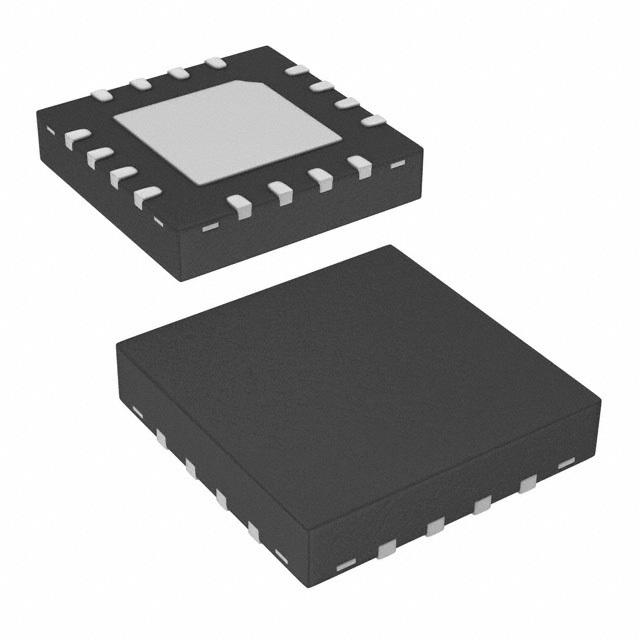

ISL6269CRZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC116487496
Category:
DC to DC Converter
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
DC DC Cntrlr Single-OUT Synchronous Buck Controller/PWM DC to DC Controller 7V to 25V Input 16Pin QFN EP
Stock Locations:
Availability:
360 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.06

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

High-Performance Notebook PWM Controller with Bias Regulator and Audio-Frequency Clamp
The ISL6269 IC is a Single-Phase Synchronous-Buck PWM controller featuring Intersil"s Robust Ripple Regulator (R3) technology that delivers truly superior dynamic response to input voltage and output load transients. Integrated MOSFET drivers, 5V LDO, and bootstrap diode result in fewer components and smaller implementation area.
Features
• High performance synthetic ripple regulation
• Extremely fast transient response
• External type-two loop compensation
• ±1% regulation accuracy: -10°C to +100°C
• Starts into a pre-biased output
• Wide input voltage range: +7.0V to +25.0V
• Wide output voltage range: +0.6V to +3.3V
• Wide output load range: 0A to 25A
• Programmable PWM frequency: 200kHz to 600kHz
• Power good monitor
• Fault identification by PGOOD pull-down resistance
• Integrated MOSFET drivers with shoot-through protection
• Internal digital soft-start
• Internal 5V LDO for self-biasing from up to 25V
• Configure forced continuous conduction or diode emulation for increased light load efficiency
• PWM minimum frequency above audible spectrum
• Integrated boot-strap diode
• Low-side MOSFET rDS(ON)overcurrent protection
• Undervoltage protection
• Soft crowbar overvoltage protection
• Over-temperature protection
• Pb-free plus anneal available (RoHS compliant)
Applications
• PCI express graphical processing unit
• Auxiliary power rail
• VRM
• Network adapter
