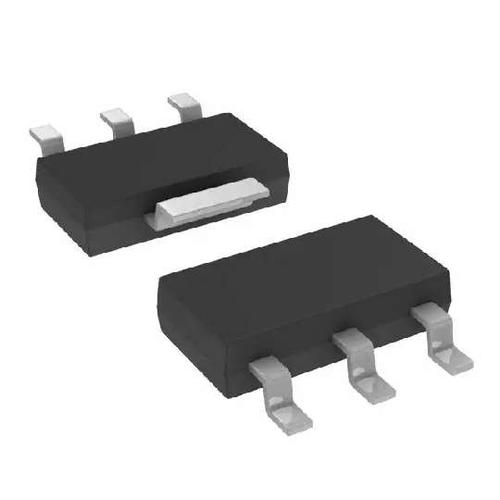

Image is for your reference only,please check specifications for details

UA78M33QDCYRG4Q1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC6447106
Category:
Voltage Regulator
Package:
SOT-223-4
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UA78M33QDCYRG4Q1 Linear Voltage Regulator, Fixed, 5.3V To 25V In, 3.3V And 0.5A Out, SOT-223-4
Stock Locations:
Availability:
909 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.67

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UA78M33QDCYRG4Q1 is a fixed Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator can deliver up to 500mA of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. In addition to use as fixed-voltage regulator, this device can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulator.
No external components
Internal thermal-overload protection
High power-dissipation capability
Internal short-circuit current limiting
Output transistor safe-area compensation
Green product and no Sb/Br

Show

UA78M33QDCYRG4Q1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	500 mA
Number of Positions	4 Position
Quiescent Current	6.00 mA
Output Capacitor Type	Capacitor Free
voltage rating	2V @350mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	25 V
Input Voltage (Min)	5.3 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	5.3V ~ 25V
	Show
Size-Width	3.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
