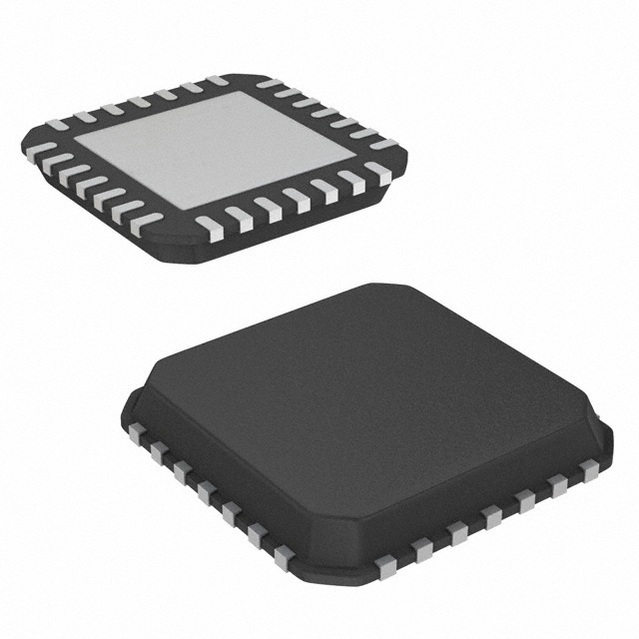

- ISL6537ACR - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC98965083
-
Category:Power Management IC
-
Package:QFN-28
-
Datasheet:Datasheet 3D Model
-
Description:Voltage Mode PWM Controller 0.8V to 5.5V/0.4V to 2.75V/0.8V 28Pin QFN EP
-
Stock Locations:
-
Availability:1,070 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.91
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ISL6537A provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller to supply VDDQ during S0/S1 and S3 states. During S0/S1 state, a fully integrated sink-source regulator generates an accurate (VDDQ/2) high current VTT voltage without the need for a negative supply. A buffered version of the VDDQ/2 reference is provided as VREF. A second PWM controller, which requires external MOSFET drivers, is available for regulation of the GMCH Core voltage. An LDO controller is also integrated for the CPU VTT termination voltage regulation and the DAC.
- Features
- • Generates 5 Regulated Voltages
- - Synchronous Buck PWM Controller for DDR VDDQ
- - 3A Integrated Sink/Source Linear Regulator with Accurate VDDQ/2 Divider Reference for DDR VTT
- - PWM Regulator for GMCH Core
- - LDO Regulator for CPU/GMCH VTT Termination
- - LDO Regulator for DAC
- • ACPI Compliant Sleep State Control
- • Glitch-Free Transitions During State Changes
- • Integrated VREF Buffer
- • VDDQ PWM Controller Drives Low Cost N-Channel MOSFETs
- • 250kHz Constant Frequency Operation
- - Both PWM Controllers are Phase Shifted 180°
- • Tight Output Voltage Regulation
- - All Outputs: ±2% Over Temperature
- • Fully-Adjustable Outputs with Wide Voltage Range: Down to 0.8V Supports DDR and DDR2 Specifications
- • Simple Single-Loop Voltage-Mode PWM Control Design
- • Fast PWM Converter Transient Response
- • Under and Overvoltage Monitoring
- • OCP on the VDDQ Switching Regulator
- • Integrated Thermal Shutdown Protection
- • Pb-Free Plus Anneal Available (RoHS Compliant)
- Applications
- • Single and Dual Channel DDR Memory Power Systems in ACPI Compliant PCs
- • Graphics Cards - GPU and Memory Supplies
- • ASIC Power Supplies
- • Embedded Processor and I/O Supplies
- • DSP Supplies
ISL6537ACR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | QFN-28 |
| Supply Current | 7 mA |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
