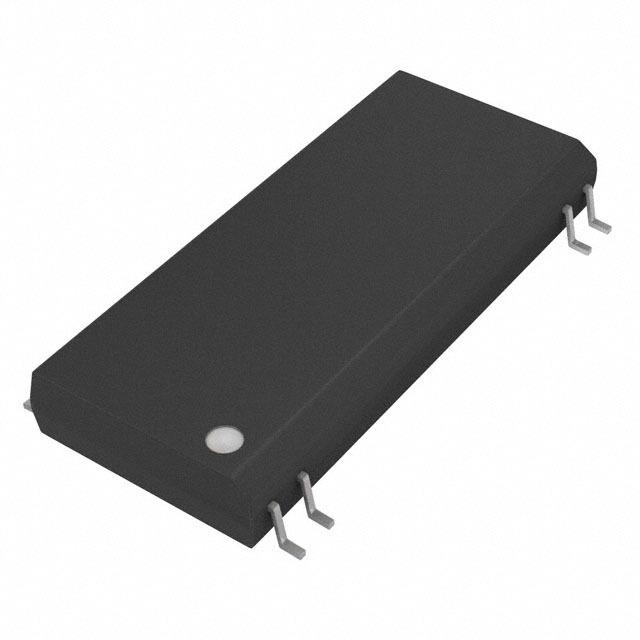

Image is for your reference only,please check specifications for details

ISO122UE4 - TI
Manufacturer:
TI
ManyChip's Part#:
MC59903103
Category:
Amplifier, Buffer IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Isolation Amplifier, Precision, 1 Amplifier, 50mV, 1.5kV, ± 4.5V to ± 18V, SOIC, 8Pins
Stock Locations:
Availability:
1,376 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 28.35

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO122UE4 is a Precision Isolation Amplifier incorporates a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. The ISO122 is easy to use. No external components are required for operation. The key specifications are 0.020% maximum nonlinearity, 50kHz signal bandwidth and 200V/°C VOS drift. A power supply range of 4.5V to 18V and quiescent currents of 5mA on VS1 and ±5.5mA on VS2 make the amplifier ideal for a wide range of applications.
100% Tested for high-voltage breakdown
Ease of use, fixed unity gain Configuration
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

ISO122UE4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	15.0 V
Supply Current	5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Bandwidth	50 kHz
Slew Rate	2.00 V/μs
Isolation Voltage	1.5 kV
Input Offset Voltage	50 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
3dB Bandwidth	50 kHz
Gain Bandwidth	50 kHz
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
