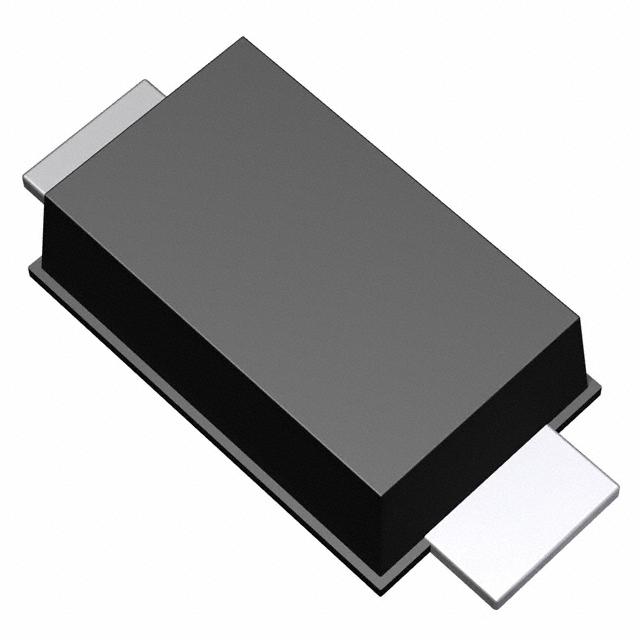

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

KDZTR10B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Capacitance Tolerance	±6 %
Number of Positions	2 Position
Power Dissipation	1 W
Test Current	40 mA
Zener Voltage	10.3 V
Input Power (Max)	1 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1 W
	Show
Size-Length	2.6 mm
Size-Width	1.6 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃
Temperature Coefficient	6.9 mV/℃
Product Lifecycle Status	Not For New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
