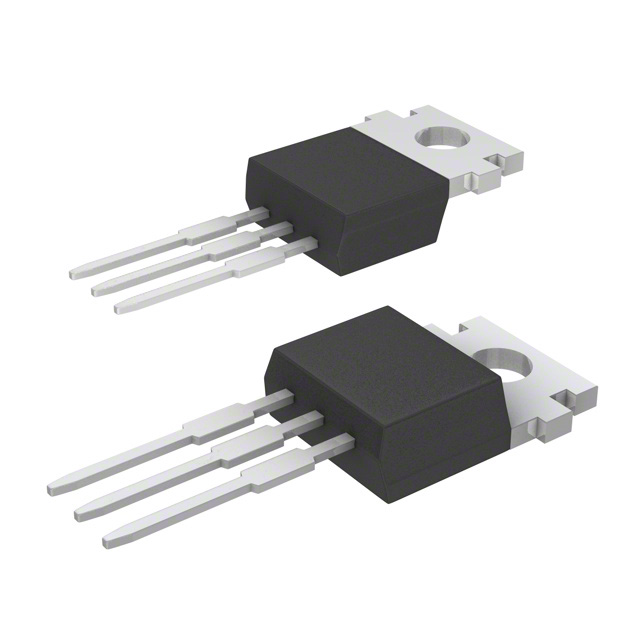

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

KSC2073 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	150 V
Current Rating	1.50 A
Polarity	NPN
Power Dissipation	25 W
Breakdown Voltage (Collector to Emitter)	150 V
Continuous Collector Current	1.5A
hFE Min	40 @500mA, 10V
hFE Max	140
Input Power (Max)	25 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	10.1 mm
Size-Width	4.7 mm
Size-Height	9.4 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
