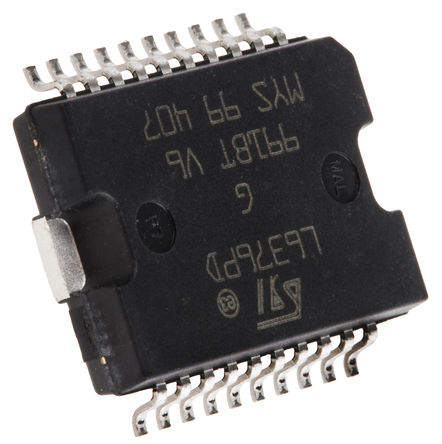

- L6376D - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC11149993
-
Category:Power Management IC
-
Package:PowerSO-20
-
Datasheet:Datasheet 3D Model
-
Description:L6376 Series 35V 0.5A High Side Driver Power Switch SMT - PowerSO-20
-
Stock Locations:
-
Availability:204 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.2
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- This device is a monolithic quad intelligent power switch in multipower BCD technology, for driving inductive, capacitive or resistive loads. Diagnostic for CPU feedback and extensive use of electrical protections make this device inherently indistructible and suitable for general purpose industrial applications.
- Features
- ■ Multipower BCD technology
- ■ 0.5 A four independent outputs
- ■ 9.5 to 35 V supply voltage range
- ■ Internal current limit
- ■ Non-dissipative over-current protection
- ■ Thermal shutdown
- ■ Under voltage lockout with hysteresys
- ■ Diagnostic output for under voltage, over temperature and over current
- ■ External asynchronous reset input
- ■ Presettable delay for overcurrent
- ■ Diagnostic
- ■ Open ground protection
- ■ Immunity against burst transient (IEC 61000-4-4)
- ■ ESD protection (human body model ± 2 kV)
L6376D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | PowerSO-20 |
| Frequency | 25 kHz |
| Number of Outputs | 4 Output |
| Output Current | 500 mA |
| Number of Channels | 4 Channel |
| Input Voltage (Min) | 4 V |
| Output Current (Max) | 500 mA |
| Output Current (Min) | 0.5 A |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 9.5.35 V |
| Supply Voltage (Max) | 35 V |
| Supply Voltage (Min) | 9.5 V |
| Input Voltage | 9.5V ~ 35V |
| Show | |
| Size-Length | 16 mm |
| Size-Width | 11.1 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
