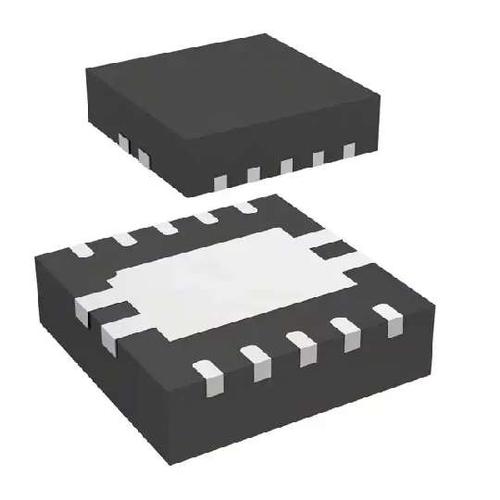

Image is for your reference only,please check specifications for details
- L6984ATR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC77859586
-
Category:Voltage Regulators
-
Package:VDFPN-10
-
Datasheet:Datasheet 3D Model
-
Description:Преобразователь постоянного тока типа DC-DC, с подъемным коэффициентом от 4,5 В до 36 В; одно выходное устройство; напряжение выхода 0,9 В; струя 0,35 А; автомобильный корпус, 10-контактные разъемы; материал корпуса VDFPN; регулируемый по положительной направленности (фиксированный); ток выходного устройства 400 мА; напряжение входного сигнала 10 В; материал корпуса DFN.
-
Stock Locations:
-
Availability:1,651 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.15
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Регулируемый по положительной направленности регуляторов переключения типа Buck; выходное устройство; напряжение выходного сигнала 0,9 В (3,3 В); ток выходного устройства 400 мА; напряжение входного сигнала 10 В; материал корпуса DFN.
L6984ATR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VDFPN-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.9 V |
| Output Current | 400 mA |
| Number of Positions | 10 Position |
| Quiescent Current | 440 µA |
| Switching Frequency | 250kHz ~ 600kHz |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 28 V |
| Output Voltage (Min) | 900 mV |
| Output Current (Max) | 0.4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 4.5V ~ 36V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
