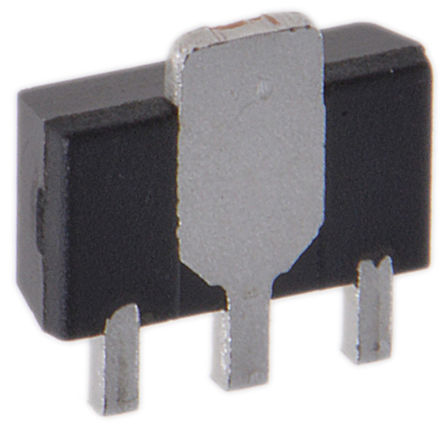

Image is for your reference only,please check specifications for details
- L78L24ACUTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC3403835
-
Category:Voltage Regulator
-
Package:SOT-89-3
-
Datasheet:Datasheet 3D Model
-
Description:Voltage regulator; linear, fixed; 24V; 0.1A; SOT89; SMD; ±4%
-
Stock Locations:
-
Availability:1,905 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.2
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- POSITIVE VOLTAGE REGULATORS ;•OUTPUT CURRENT UP TO 100 mA • THERMAL OVERLOAD PROTECTION •SHORT CIRCUIT PROTECTION • NO EXTERNAL COMPONENTS ARE REQUIRED
L78L24ACUTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOT-89-3 |
| Number of Outputs | 1 Output |
| Output Voltage | 24 V |
| Output Current | 100 mA |
| Supply Current | 6mA ~ 6.5mA |
| Number of Positions | 3 Position |
| Quiescent Current | 6.5 mA |
| voltage rating | 1.7V @40mA |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 33 V |
| Output Voltage (Min) | 24 V |
| Output Current (Max) | 100 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | ±4 % |
| Input Voltage | 40 V |
| Show | |
| Size-Length | 4.6 mm |
| Size-Width | 2.6 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
