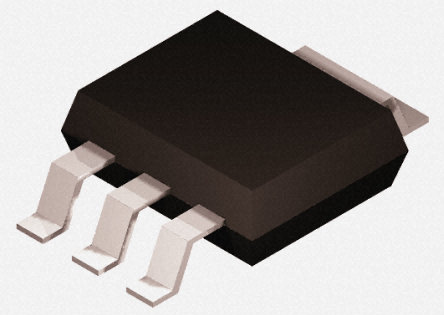

Image is for your reference only,please check specifications for details
- LD1117ASTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC7394204
-
Category:Voltage Regulator
-
Package:TO-261-4
-
Datasheet:Datasheet 3D Model
-
Description:LDO Regulator Pos 1.25V to 15V 1.2A 4Pin(3+Tab) SOT-223 T/R
-
Stock Locations:
-
Availability:778 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.44
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 1A SOT-223
LD1117ASTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 10.0V (max) |
| Output Voltage | 1.25V ~ 15V |
| Output Current | 1 A |
| Supply Current | 5 mA |
| Number of Positions | 4 Position |
| Power Dissipation | 12 W |
| Quiescent Current | 2 mA |
| voltage rating | 1.15V @1A,1V @100mA,1.05V @500mA |
| Input Voltage (Max) | 10 V |
| Output Voltage (Max) | 15 V |
| Output Voltage (Min) | 1.25 V |
| Output Current (Max) | 1.2 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 12000 mW |
| Accuracy | ±2 % |
| Input Voltage | ≤15 V |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 1.8 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
