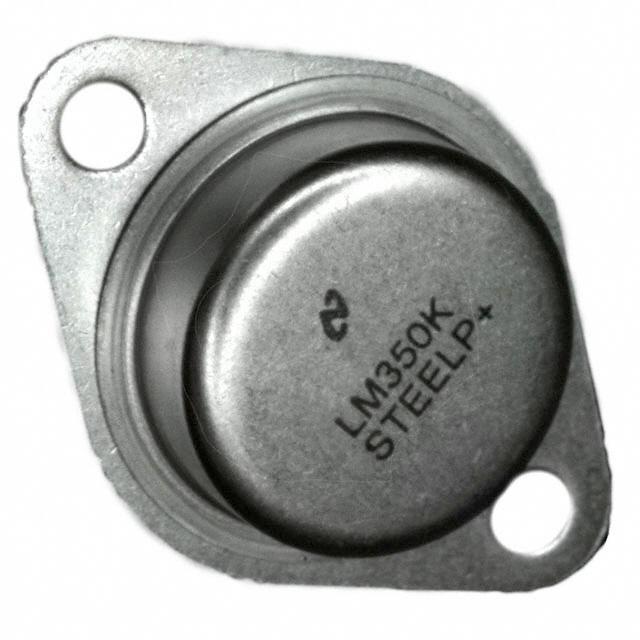

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 5A TO-3-2
LM338K STEEL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-3-2 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 35.0V (max) |
| Output Voltage | 1.2V ~ 32V |
| Output Current | 5 A |
| Power Dissipation | 50 W |
| Quiescent Current | 3.00 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 2.70 V |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 4.2 V |
| Output Voltage (Max) | 32 V |
| Output Voltage (Min) | 1.24 V |
| Output Current (Max) | 5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 50000 mW |
| Input Voltage | 4.2V ~ 40V |
| Show | |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
