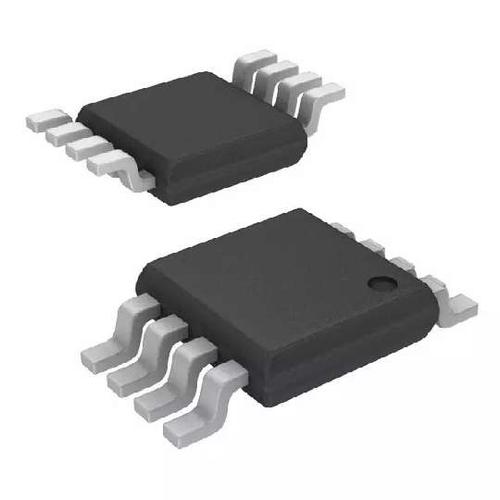

Image is for your reference only,please check specifications for details
- LM358AST - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC41712365
-
Category:Operational Amplifier, OP Amp IC
-
Package:TSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:DUAL OP-AMP, 4000uV OFFSET-MAX, 1.1MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MINI, SOP-8
-
Stock Locations:
-
Availability:241 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.21
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Amplifier 2 Circuit 8-MiniSO
LM358AST Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Output Current | 40mA @15V |
| Supply Current | 700 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 500 mW |
| Common Mode Rejection Ratio | 70 dB |
| Bandwidth | 1.1 MHz |
| Slew Rate | 600 mV/μs |
| Gain Bandwidth Product | 1.1 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 20 nA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 1.1 MHz |
| Minimum CMRR Range | 70 dB |
| Supply Voltage | 3V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
