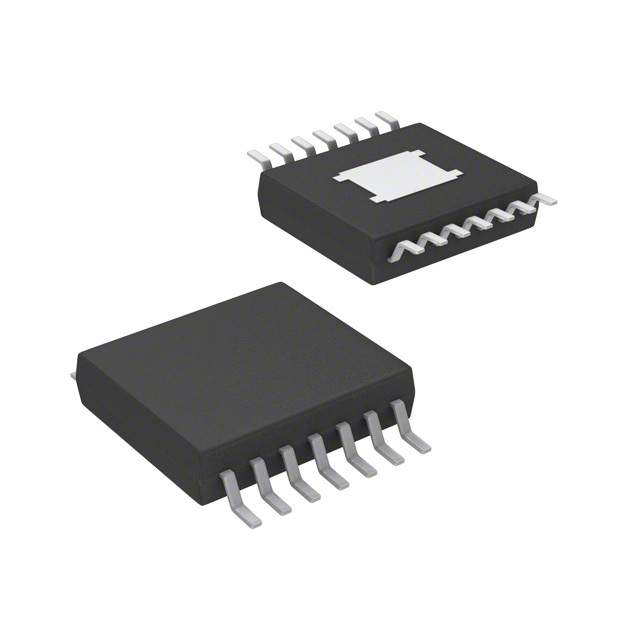

Image is for your reference only,please check specifications for details

LM5161QPWPTQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC5442726
Category:
DC to DC Converter
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 100V Synchronous Step Down Single-Out 2V to 92V 1A Automotive 14Pin HTSSOP EP T/R
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.99

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM5161-Q1 is a 100-V, 1-A synchronous step-down converter with integrated high-side and low-side MOSFETs. The constant-ON-time control scheme requires no loop compensation and supports high step-down ratios with fast transient response. An internal feedback amplifier maintains ±1% output voltage regulation over the entire operating temperature range. The ON-time varies inversely with input voltage resulting in nearly constant switching frequency. Peak and valley current limit circuits protect against overload conditions. The under-voltage lockout (EN/UVLO) circuit provides independently adjustable input undervoltage threshold and hysteresis. The FPWM input pin in LM5161-Q1 selects either the forced continuous conduction mode (CCM) under all load levels or the discontinuous conduction mode (DCM) under light or no load conditions. When operating in forced CCM, the LM5161-Q1 supports the multiple output and isolated Fly-Buck applications. When programmed for the DCM operation, the LM5161-Q1 provides a tightly regulated buck output without any additional external feedback ripple injection circuit.

Show

LM5161QPWPTQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Number of Outputs	1 Output
Output Voltage	2V ~ 92V
Output Current	1 A
Number of Positions	14 Position
Switching Frequency	1 MHz
Switching Current	1.61 A
Input Voltage (Max)	100 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	92 V
Output Voltage (Min)	2 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 100V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
