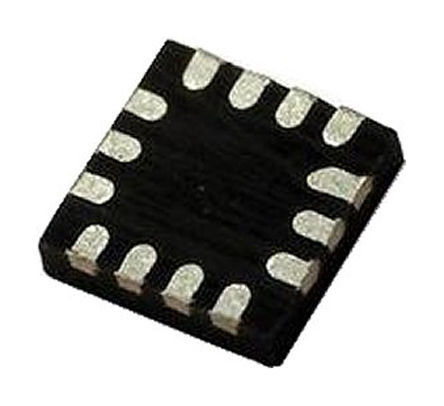

LMH3401IRMST - TI
Manufacturer:
TI
ManyChip's Part#:
MC5641993
Category:
Operational Amplifier, OP Amp IC
Package:
UQFN-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMH3401IRMST Differential Amplifier, Fixed-Gain, 1 Amplifiers, 16.6dB, 7GHz, -40℃, 85℃
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 23.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMH3401IRMST is a very high-performance Differential Amplifier optimized for intermediate frequency (IF) or high-speed, time-domain applications. This device is ideal for DC- or AC-coupled applications that require a single-ended to differential conversion when driving an analog-to-digital converter (ADC). The LMH3401 generates very low levels of second-order and third-order distortion when operating in single-ended-input to differential-output or differential-input to differential-output mode. The on-chip resistors simplify printed circuit board (PCB) implementation and provide the highest performance over the usable bandwidth of 2GHz. This performance makes the LMH3401 ideal for applications such as broadband communications and high-speed data acquisition. A common-mode reference input pin is provided to align the amplifier output common-mode with the ADC input requirements.
Supports single-supply or split-supply operation
Powered-down feature
Excellent single-ended to differential conversion performance from DC to 2GHz
16dB Fixed single-ended to differential voltage gain
9dB at 200MHz (RS=50R) Noise figure
55mA Supply current
Green product and no Sb/Br

Show

LMH3401IRMST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	UQFN-14
Supply Current	55 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	72dB ~ 72dB
Bandwidth	7 GHz
Slew Rate	18.0 kV/μs
Gain Bandwidth Product	8.00 GHz
Output Power	13 dBm
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	7 GHz
Supply Voltage	3.3V ~ 5.25V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3.3 V
	Show
Size-Length	2.6 mm
Size-Width	2.6 mm
Size-Height	0.52 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
