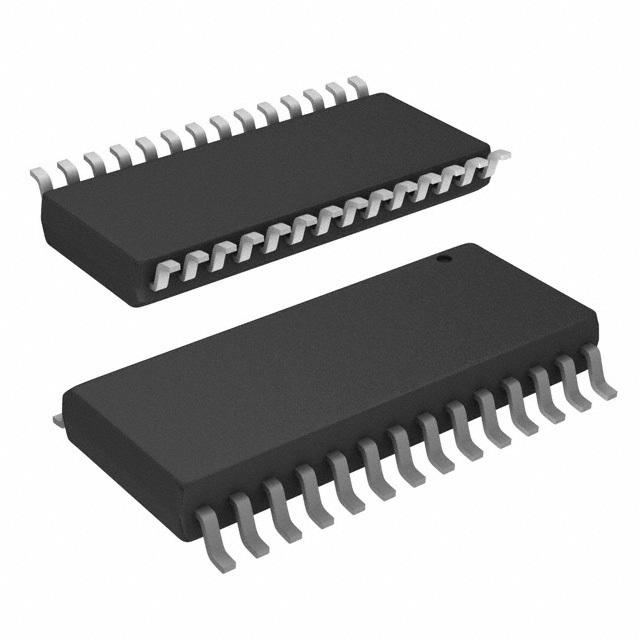

Image is for your reference only,please check specifications for details
- LTC3714EG - Linear Technology
-
Manufacturer:Linear Technology
-
ManyChip's Part#:MC120348579
-
Category:Voltage Regulator
-
Package:SSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:DC-DC контроллер одиночный выход понижающий 2000 кГц 28-выводной SSOP
-
Stock Locations:
-
Availability:258 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 31.63
Updated at 15/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Управляющий устройством для синхронного понижения напряжения LTC3714EG от компании Linear Technology позволяет изменять уровень постоянного напряжения на другой значение. Его выходной ток составляет 20 А. У этого управляющего устройства есть один выход, а его напряжение колеблется в диапазоне от 0,6 до 1,75 В. Это оптимальное решение для управления энергией. Напряжение ввода составляет от 4 до 36 В. Частота переключения устройства составляет 2000 кГц. Минимальная рабочая температура составляет -40 °C, а максимальная – 85 °C.
LTC3714EG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SSOP-28 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 1.75V |
| Output Current | 2.00 A |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 4 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4V ~ 36V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
