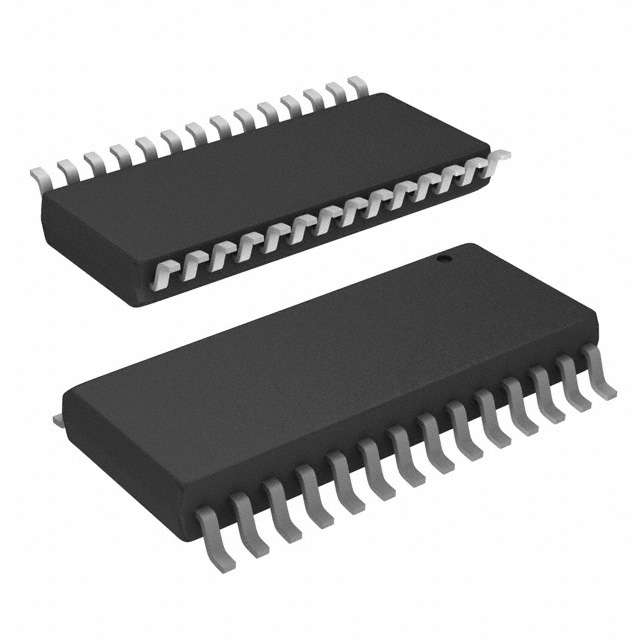

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The MAX306/MAX307 precision, monolithic, CMOS analog multiplexers (muxes) offer low on-resistance (less than 100Ω), which is matched to within 5Ω between channels and remains flat over the specified analog signal range (7Ω, max). They also offer low leak age over temperature (INO(OFF)less than 2.5nA at +85°C) and fast switching speeds (tTRANSless than 250ns). The MAX306 is a single-ended 1-of-16 device, and the MAX307 is a differential 2-of-8 device.
Features
♦Guaranteed On-Resistance Match Between Channels, <5ΩMax
♦Low On-Resistance, <100ΩMax
♦Guaranteed Flat On-Resistance over Specified Signal Range, 7ΩMax
♦Guaranteed Charge Injection, <10pC
♦INO(OFF)Leakage <2.5nA at +85°C
♦ICOM(OFF)Leakage <20nA at +85°C
♦ESD Protection >2000V
♦Plug-In Upgrade for Industry-Standard DG406/DG407/DG506A/DG507A
♦Single-Supply Operation (+5V to +30V)
Bipolar-Supply Operation (±4.5V to ±20V)
♦Low Power Consumption, <1.25mW
♦Rail-to-Rail Signal Handling
♦TTL/CMOS-Logic Compatible
Applications
Sample-and-Hold
Circuits
Test Equipment
Heads-Up Displays
Guidance and Control Systems
Military Radios
Communications Systems
Battery-Operated Systems
PBX, PABX
Audio Signal Routing

Show
