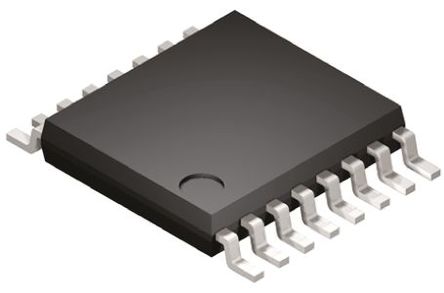

Image is for your reference only,please check specifications for details

MAX4781EUE+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC28196321
Category:
Multiplexer IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS MAX4781EUE+ 8:1 Analog Multiplexer IC, Single, 2.5Ω, 1.6V to 3.6V, TSSOP-16
Stock Locations:
Availability:
285 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.91

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX4781EUE+ is a high-speed, low voltage, CMOS analogue multiplexer in 16 pin TSSOP package. This device is configured as an 8-channel multiplexer, switch on-resistance increases as the supply voltage is lowered. This device handle rail to rail analogue signals while consuming less than 3µW of quiescent power making it ideal for low voltage data acquisition systems.
Supply voltage range is 1.6V to 3.6V
Operating temperature range from -40°C to 85°C
Maximum on-resistance is 2.5ohm at TA=+25°C (single +1.8V supply)
1.8V CMOS-logic compatible
Fast switching times, tON = 17ns and tOFF = 8ns at TA=+25°C (single +1.8V supply)
On-resistance match between channels is 0.3ohm (+3V supply)
On-resistance flatness is 0.1ohm (+3V supply)
Single supply operation down to 1.6V
High current handling capacity (150mA continuous)
Pin compatible with industry standard 74HC4051/74HC4052/74HC4053 & MAX4617/MAX4618/MAX4619
