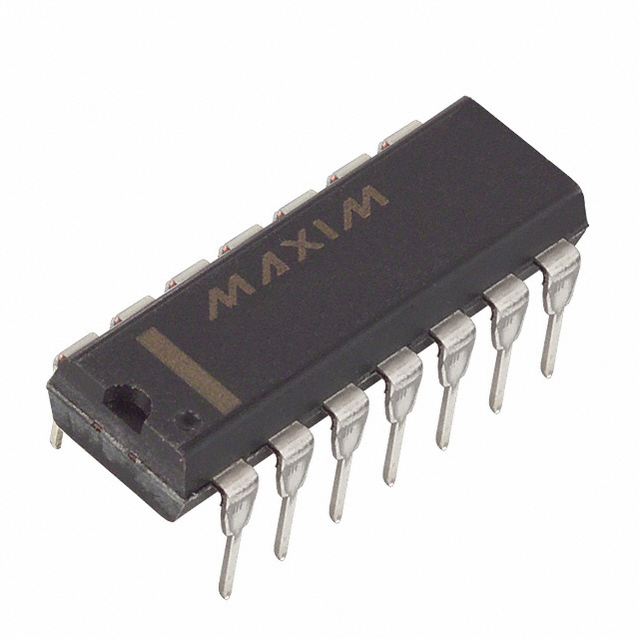

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The MAX481E, MAX483E, MAX485E, MAX487E–MAX491E, and MAX1487E are low-power transceivers for RS-485 and RS-422 communications in harsh environments. Each driver output and receiver input is protected against ±15kV electro static discharge (ESD) shocks, without latchup. These parts contain one driver and one receiver. The MAX483E, MAX487E, MAX488E, and MAX489E feature reduced slew rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX481E, MAX485E, MAX490E, MAX491E, and MAX1487E are not limited, allowing them to transmit up to 2.5Mbps.
Features
♦ ESD Protection: ±15kV—Human Body Model
♦ Slew-Rate Limited for Error-Free Data
Transmission (MAX483E/487E/488E/489E)
♦ Low Quiescent Current:
120µA (MAX483E/487E/488E/489E)
230µA (MAX1487E)
300µA (MAX481E/485E/490E/491E)
♦ -7V to +12V Common-Mode Input Voltage Range
♦ Three-State Outputs
♦ 30ns Propagation Delays, 5ns Skew (MAX481E/485E/490E/491E/1487E)
♦ Full-Duplex and Half-Duplex Versions Available
♦ Allows up to 128 Transceivers on the Bus (MAX487E/MAX1487E)
♦ Current Limiting and Thermal Shutdown for Driver Overload Protection
Applications
Low-Power RS-485 Transceivers
Low-Power RS-422 Transceivers
Level Translators
Transceivers for EMI-Sensitive Applications
Industrial-Control Local Area Networks

Show

MAX489ECPD Specifications
