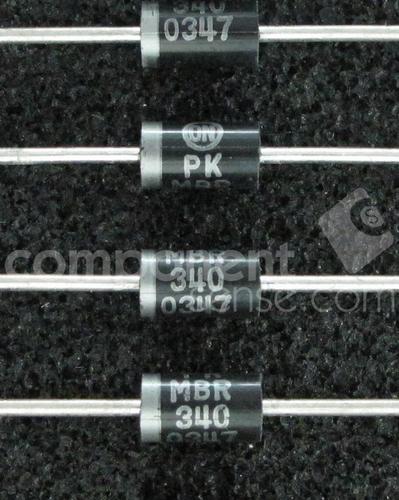

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MBR340 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AA
Voltage Rating (DC)	40.0 V
Current Rating	3.00 A
Output Current	≤3.00 A
Forward Voltage	600mV @3A
Polarity	Standard
Forward Current	3 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	600mV @3A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	65℃ ~ 175℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
