Description

Surface Mount Schottky Power Rectifier
POWERMITE® Power Surface Mount Package
The Schottky Powermite® employs the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop−reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount Rectifier. With its unique heatsink design, the Powermite® has the same thermal performance as the SMA while being 50% smaller in footprint area, and delivering one of the lowest height profiles, < 1.1 mm in the industry. Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards. Typical applications are AC−DC and DC−DC converters, reverse battery protection, and “ORing” of multiple supply voltages and any other application where performance and size are critical.
Features
• Low Profile − Maximum Height of 1.1 mm
• Small Footprint − Footprint Area of 8.45 mm2
• Low VF Provides Higher Efficiency and Extends Battery Life
• Supplied in 12 mm Tape and Reel
• Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink
• ESD Ratings: Human Body Model, 3B > 16000 V
Machine Model, C > 400 V
• Pb−Free Packages are Available

Show

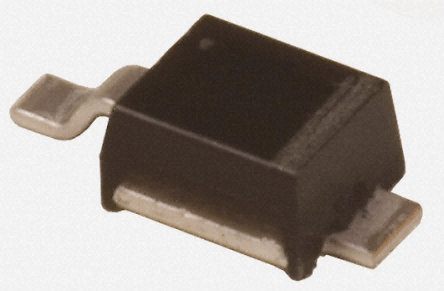

MBRM120LT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Voltage Rating (DC)	20.0 V
Current Rating	1 A
Halogen Free Status	Halogen Free
Output Current	1 A
Number of Positions	2 Position
Forward Voltage	450mV @1A
Polarity	Standard
Thermal Resistance	23℃/W (RθJL)
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	450 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	125 ℃
	Show
Size-Length	2.18 mm
Size-Width	2.05 mm
Size-Height	1.15 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
