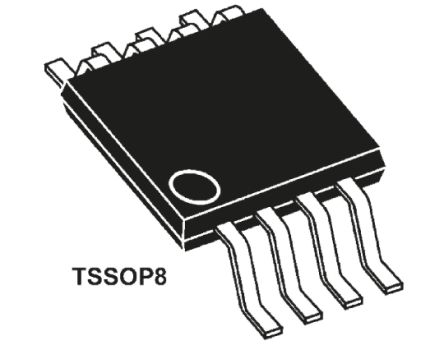

Image is for your reference only,please check specifications for details

MC100EPT22DTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC15111796
Category:
Voltage Level Translator IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC100EPT22DTG LVTTL / LVCMOS-to-Differential LVPECL Translator, 1Input, 50mA, 420 ps, 3V to 3.6V, TSSOP-8
Stock Locations:
Availability:
255 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC100EPT22DTG is a 3.3V dual LVTTL/LVCMOS to differential LVPECL Translator ideal for those applications where space, performance and low power are at a premium. Because LVPECL (positive ECL) levels are used only 3.3V and ground are required. Because the mature MOSAIC 5 process is used, low cost and high speed can be added to the list of features.
PNP LVTTL Inputs for Minimal Loading
Q Output will default high with inputs open
Contains temperature compensation
>1.1GHz Typical maximum frequency

Show

MC100EPT22DTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	3.30 V
Halogen Free Status	Halogen Free
Output Current	50 mA
Supply Current	45.0 mA
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Number of Bits	2 Bit
Number of Gates	2 Gate
Rise Time	110 ps
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	1 Channel
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Weight	0.0025278704452 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
